Model Railway

During this winter I have built a small model railway inside Hadar. I have been a model railway engineer since my early teens, culminating in building an ‘0’ gauge exhibition layout “Holmehurst” and exhibiting it around the country in the 1990’s. Since moving onto Hadar I tried to build a ‘009’ narrow gauge layout in a pine box, but due to the tightness of the curve, only one of the locos I had could negotiate it. Since we moved onto our residential mooring here in Warwick I had planned to build a ‘009’ layout in the garden. Having towards the end of last year been on-board a colleagues boat where he is building a ‘009’ layout around his saloon, this got me thinking.

SAM_1375

This was the original layout from inside the box, which in this photo I have already sawn the board up and removed the curved track.

SAM_1377

This photo is with the sections repositioned to form the new layout.

SAM_1384b

The layout has had a wood edging added to it and placed in it’s position on the shelf above the display cabinet with my ‘0’ gauge rolling stock in it.

SAM_1385b

The new section of track has been added to reconnect the original two halves.

SAM_1387b

Viewed from the end of the layout.

SAM_1390b

Electrically testing the layout with some of the existing stock having wired up the layout. The existing stock is what I kept from my late father’s layout.

SAM_1409b

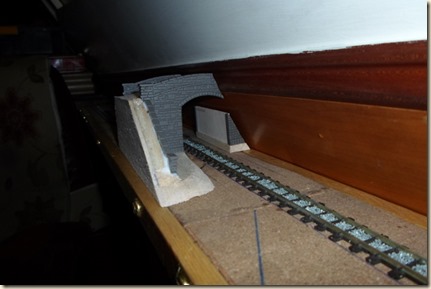

Starting construction of the road bridge over the railway to divide the layout to the right, from the “fiddleyard” to the left. A “fiddleyard” is a model railway term for the rest of the railway, which is where rolling stock can be changed.

SAM_1422b

Ballasting the new section of track.

SAM_1427b

The road bridge is completed.

SAM_1432

The baseboard and landscaping has been painted with “chocolate” emulsion paint.

IMG_1387b

Ballasting completed.

IMG_1390b

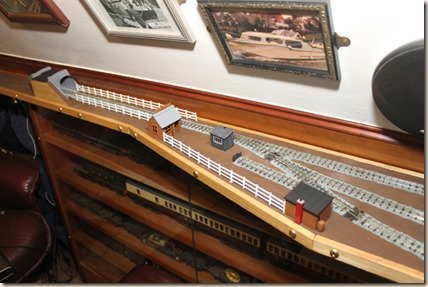

Attaching the 3 buildings and fences. the smallest building came ready made and painted, the other 2 were kits which had to be built and painted.

IMG_1391b

Trees positioned and fixed in place.

IMG_1396b

Rock face and bushes fixed in place at the end of the layout, appropriately shaped so I can still see all of the TV from my armchair!

IMG_1397b

Level crossing made from balsa wood and painted.

IMG_1402b

Scatter and foliage added. Scatter is very small material that is appropriately coloured to represent, grass, meadowland, etc..

SAM_1457b

PVA glue applied to the baseboard before sprinkling the scatter on the front of the layout on what will be a sheep field.

SAM_1459b

Applying the PVA glue at the rear of the layout behind the fencing.

SAM_1462b

The rear of the rock face has been finished off with balsa wood, and subsequently varnished, to hide the rough rear to the ‘cork’ that I used for the rock face, and the wood construction to attach it to the baseboard.

IMG_8160b

Sprinkling ‘scatter’ on using a teaspoon!

IMG_8170b

Different coloured scatter used in the station and mine area, the darker grey scatter represents the tarmac roadway. The lighter grey has just been applied and awaiting drying before removing the loose scatter.

SAM_1471bSAM_1470b

Station and mine area scatter completed and the station platform constructed from balsa wood fixed in place

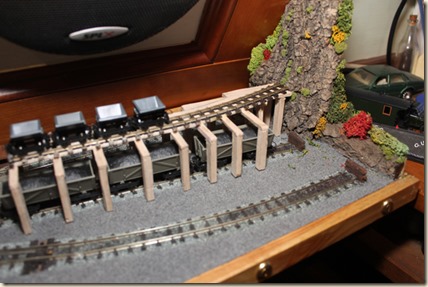

IMG_1413bThe high level line which emerges from the mine again constructed from balsa wood with tipper wagons on the mine track, which tip the material mined into the larger wagons below.

IMG_1417b

Level crossing barriers and loading gauge fitted. A loading gauge is to check that wagons are not loaded too high to clear bridges etc..

IMG_1425b

The high level line platform completed with safety barriers and access ladders, and the mine entrance constructed and all painted.

IMG_8229IMG_8231IMG_8234

3 stages of adding ‘spilled’ mining material on and around the high level line. Stage 1: selecting a piece with a pair of tweezers. Stage 2: applying PVA glue to the selected piece. Stage 3: positioning the piece in place.

IMG_1437

Mine workers fixed to the layout.

I then painted some wild animals and placed them in various locations around the layout.

IMG_8291b

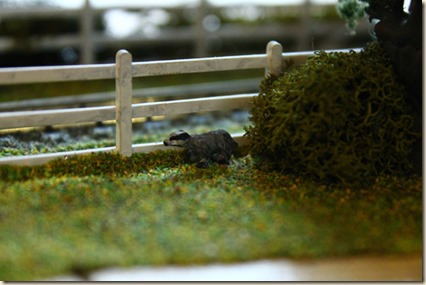

A Badger.

IMG_8293b

A Hedgehog.

IMG_8295b

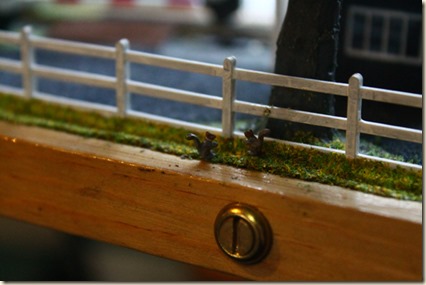

A pair of Squirrels.

IMG_8297b

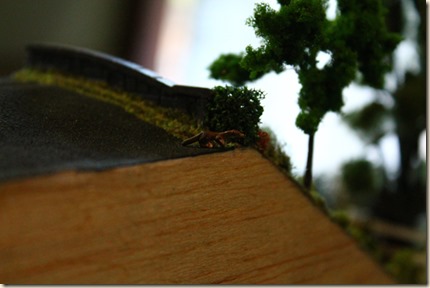

A Hare running beside the track.

IMG_8298b

4 Rabbits.

IMG_8305b

Finally a Weasel scurries alongside the road.

IMG_8332IMG_8329

Rock climbers on the rock face, either side of the mine. Like the wild animals I had to paint these.

SAM_1509

A farmer with his tractor and trailer about to collect some sheep.

IMG_8372

A Landrover crossing the road bridge. I made the ‘Hump-Backed Bridge’ sign by printing out the image on our printer and sticking it to a needle painted grey.

IMG_8389b

This model of a Baldwin 2-6-0 loco I originally built for my late father for his layout. I have repaired and repainted it and got it running quite nicely now, hope Dad likes to look down on it.



And finally station station staff and passengers were added to the layout, which has completed it.

SAM_1530SAM_1526

SAM_1529

Since taking the last photo I bought some new carriages and they fouled on the fencing between the track and the footpath from the road to the platform. I therefore had to remove that piece of fencing. Also I must check the height of any future level crossings, as the steamcoach I have fouls on the one I built! I am not too bothered about this as I have enough passenger coaches for this layout.

Now I can sit back and enjoy it. In the meantime, Jo has suggested that when we stop selling coal, I should build a larger layout in the hold, which I have already started making plans for. Watch this space for when I start that project.

Keith.
